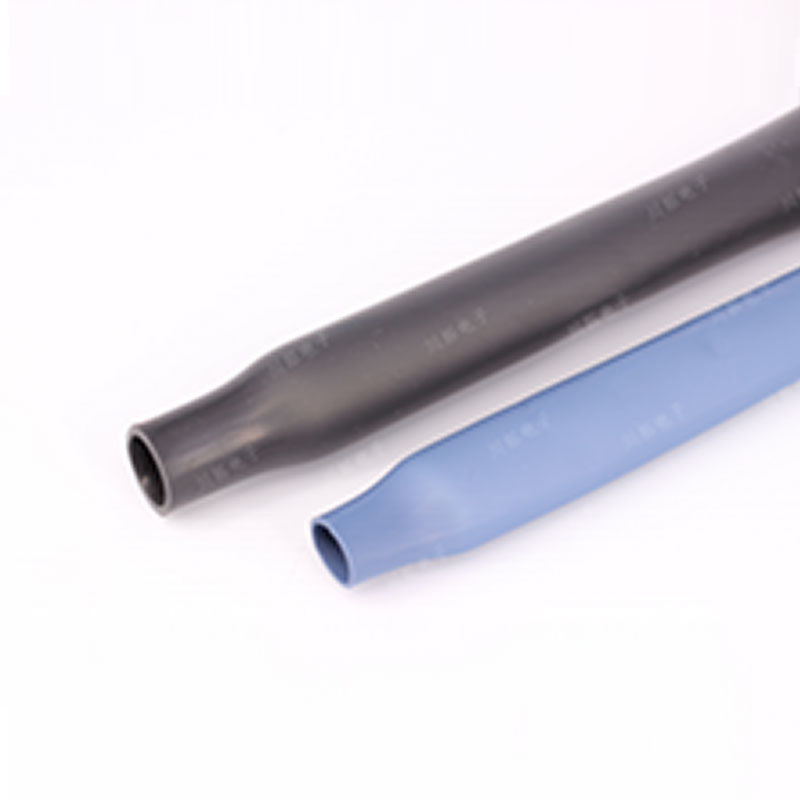

CT-FSR200 Silicone Heat-Shrink Tubing
Product consultation telephone: 13926000236
Product Details
Basic performance:
Material: Silicone rubber and high-performance elastomer;
Shrink ratio: 1.7:1;
Shrinking start temperature: 170℃;
Full shrinkage temperature: 200℃;
Continuous operating temperature: -55℃ to 200℃.
Performance features:
Very soft and elastic, bendable;
High-temperature fluid, long-term heat resistance;
Withstands voltage, corona discharge, and is acid- and alkali-resistant with strong insulation properties;
Good mechanical performance in resisting puncture and stab damage, as well as properties such as resistance to aging.
Application uses:
Equipment and applications with certain requirements for product flexibility and temperature resistance;
Rust and corrosion prevention treatments for metal products, wire marking or color coding, etc.;
Wire connections, solder joint protection, protection and insulation of wire ends, wire harnesses, and electronic components.
Specification dimensions:
Unit: millimeters
| Product Code |
Inner diameter |
Fully contracted wall thickness |
|
| Minimum before contraction |
Maximum after contraction |
||
| CT-FSR-1.5/0.9 |
1.5 |
0.9 |
1.00 ± 0.20 |
| CT-FSR-3.2/1.8 |
3.2 |
1.8 |
1.00 ± 0.20 |
| CT-FSR-6.4/3.6 |
6.4 |
3.6 |
0.89 ± 0.25 |
| CT-FSR-9.5/5.4 |
9.5 |
5.4 |
1.02 ± 0.25 |
| CT-FSR-12.7/7.3 |
12.7 |
7.3 |
1.22 ± 0.38 |
| CT-FSR-15.9/9.1 |
15.9 |
9.1 |
1.32 ± 0.38 |
| CT-FSR-19.1/10.9 |
19.1 |
10.9 |
1.45 ± 0.38 |
| CT-FSR-22.2/12.7 |
22.2 |
12.7 |
1.65 ± 0.38 |
| CT-FSR-25.4/14.5 |
25.4 |
14.5 |
1.78 ± 0.51 |
| CT-FSR-31.8/18.1 |
31.8 |
18.1 |
2.21 ± 0.51 |
| CT-FSR-38.1/21.8 |
38.1 |
21.8 |
2.41 ± 0.51 |
| CT-FSR-44.5/25.4 |
44.5 |
25.4 |
2.71 ± 0.51 |
| CT-FSR-50.8/29.0 |
50.8 |
29.0 |
2.79 ± 0.51 |
Note: Standard color: Black (other colors and sizes available upon customization)
